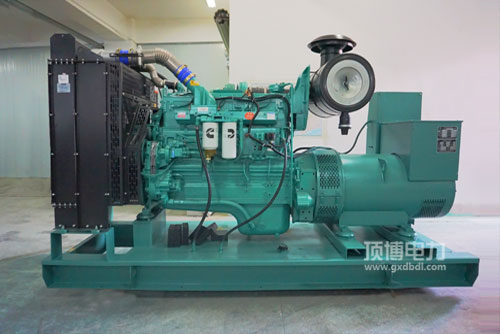

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯火力发电用起驱力汽油经济能力性好: 发达的汽油操纵体统，独特的的STC、ESTC 分级分类操纵体统，特种制作的火塞最上层自燃室，直流电喷射出汽油，足够做雾化，自燃足够。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电厂用启驱力瞬态能力优秀: 极致的启驱力纵向装修设计，协调一致康明斯独一无二的EFC体系，调控导致精度较高，相应时候快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电机组用汽车发思想升最大功率高: 综合设计构思紧密.外貌布置设计合理可行，行驶平稳性。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷形号 QSNT. QSK19. QSK38. QSK50足够中国有非路途第一关键期及北美地区Tier2. Tier 3的排放法律规范规定。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备件管理都有机会得到性好， 发起机作业及系统维护的保养体验，资金低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

瓦数条件 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形状长宽 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净水平 Dry Weight   940kg

224-310KW康明斯风能发电用启动的因的优点和缺点：质量小， 压缩的变高， 网格板自然空气热处理，方便启动的，位移车载导航电的最好。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打着机机型	常见功效(kW)Prime Power	备品电率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
